15x15x2.5mm 4" Radius R100 Carbide Inserts For Grizzly H9893 H7354 for Byrd Shelix - 10 Pack

  • Sale
  • Regular price $24.99
Shipping calculated at checkout.


15x15x2.5mm 4" Radius R100 Carbide Inserts For Grizzly H9893 H7354 for Byrd Shelix Cutterheads - 10 Pack

15x15x2.5mm R100 4" Radius Carbide Inserts For Byrd Shelix Cutterheads For Grizzly H9893 - 10 Pack

These 10 inserts fits all Byrd Shelix heads. Can also be used on Easy Wood Full Size Rougher Ci1-R4, Replaces Grizzly H7354, and many others, Please Call the shop if you have any questions on applications

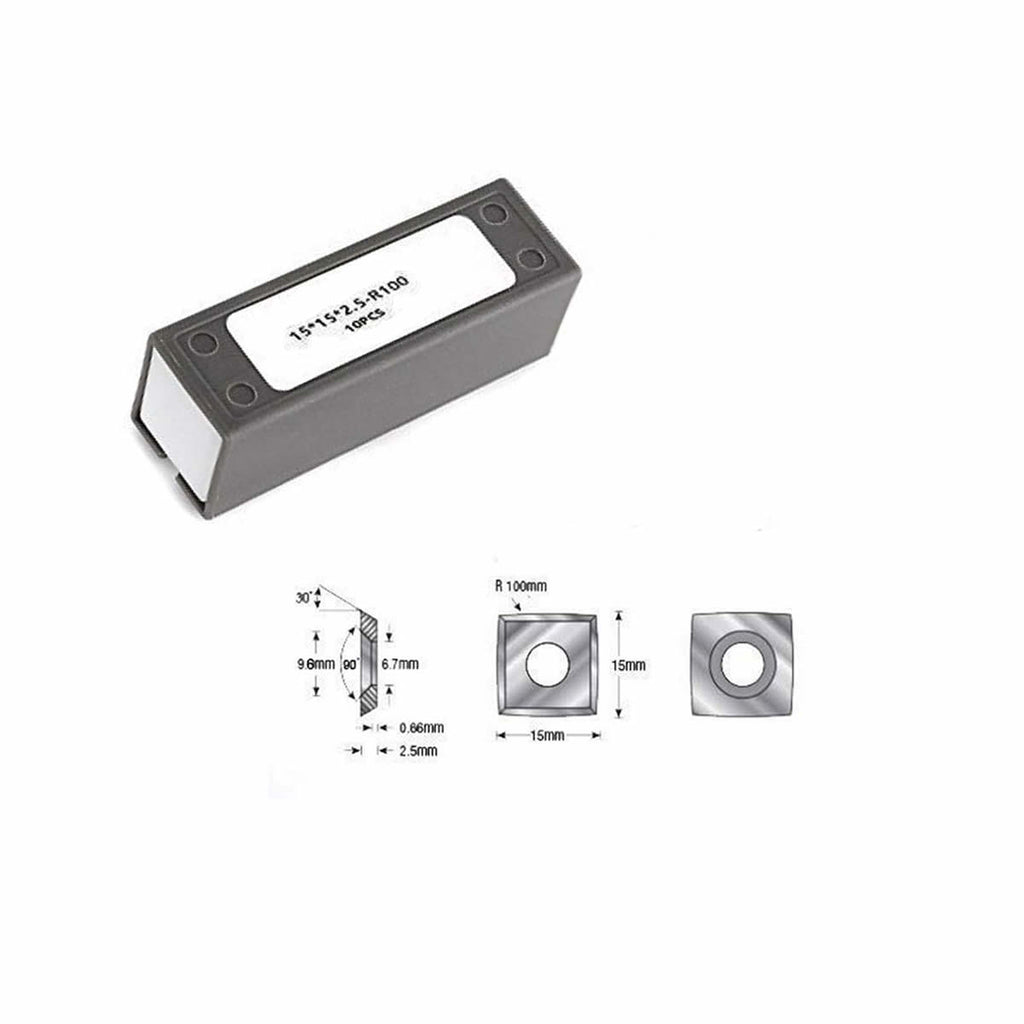

Size = 15mm x 15 mm x 2.5 mm
Each order contains 10 brand new inserts and get a free case.
edges : radius 100mm

When replacing or rotating inserts, the seat should be as clean as possible. This will prevent breakage of inserts and ensure proper insert alignment. To properly align the insert, press the insert away from the seat while tightening to approximately 55 inch pounds torque. This allows the countersink in the tip and the taper of the head on the flathead screw to slide the tip into its proper position.
